Lithium Ion Deep Cycle Marine Batteries for Trolling Motors

We carry LiFePO4 Lithium batteries for Trolling Motors

Lithium marine batteries

If your current batteries interrupt your time on the water, it may be time to upgrade. This is often the case with conventional lead-acid, AGM, and other lithium battery technologies. You need a deep-cycle lithium-iron-phosphate (LiFePO4) battery built for trolling motors and other marine applications. Look no further than LBS for the best lithium marine batteries to keep your trolling motor running all day without fail.







Built for your lifestyle

Whether an angler, cruiser, or racer, you will want to spend more time on the water as much as you can. Our marine battery for trolling motors will suit all watercraft and guarantee reliable power and performance. LiFePO4 batteries are maintenance-free, durable, lightweight, and safer to use. Plus, they recharge fast and withstand the harshest environments and temperatures, making them perfect for trolling and other marine use. Let’s explore the advantages below.

Built tough

LiFePO4 marine batteries have a rugged design and a wide operating temperature range, making them ideal for trolling. They will work efficiently in operating temperatures of 0 to 60 degrees Celsius when charging and -20 to 60 degrees Celsius when discharging. Plus, we use only IP55-certified marine battery cases for water resistance.

Lifespan

Upgrading to our LiFePO4 batteries means doubling the usage from one charge and getting up to ten times the lifespan of lead-acid or AGM batteries. Each battery can reach up to 6000 cycles, which could mean over ten years of not having to buy a replacement.

Go faster

Is your current battery setup weighing down your boat? You can go faster and travel on shallower water when you have a lighter boat. That means using a lightweight battery, like LiFePO4. For example, our 12v 60Ah LiFePO4 deep-cycle battery weighs only 15 lbs, making it significantly lighter than any lead-acid or gel counterpart. It’s also more compact at just 10.23 x 6.88 x 7.76 inches, so it won’t take up much space in your boat. In most cases, you can use one lithium battery with enough power instead of connecting multiple batteries in a series.

High-performance and constant power

Lithium marine batteries provide exceptional and reliable power for your boat, especially when using power-hungry devices like navigational tools and appliances. As deep-cycle batteries, they provide consistent power with steady output voltage, even with continued usage. You also get twice the power of regular batteries and power that lasts four times longer.

Ensure safety

One of the best features of lithium deep-cycle marine batteries is the battery management system (BMS), the electronic board that manages and controls their performance. The BMS also safeguards the battery from reverse polarity, short-circuiting, and overcharging. Plus, it ensures the battery is safe to use and recharge, making it essential for a longer lifespan and reliable performance.

No more second-guessing

With lithium batteries, you won’t have to worry if you have enough power to last all day. You can confidently spend more time on the water without worries about getting stuck somewhere because the battery ran out of juice. That makes LiFePO4 marine batteries ideal for other activities like freight transport, water sports, and fishing.

Our batteries also have a built-in LED charge indicator that lets you know how much charge is left at a glance. It’s conveniently positioned on top of our battery, so you can easily see it. With this feature, you’ll know when to recharge your batteries.

Installing your new batteries

LiFePO4 marine batteries can be drop-in replacements for AGM and lead-acid batteries. Just be sure to get the right size for your requirements. Also, don’t forget to buy a suitable LiFePO4 charger for your battery, as using a lead-acid battery charger will cause damage and void warranty.

Marine & Trolling Motor Batteries

UPS Ground for US orders

Filter by Voltage

If you don´t find the Specific Battery above that you would like, drop us an email and we will quote a custom size built order!

Brands

Minn Kota

Bass Pro

Motor Guide

Rhodan

Newport

Warersnake

Voltages

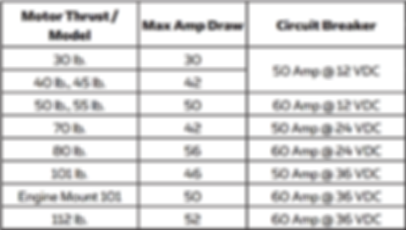

Motor Size Specs

The LBS marine battery cases are IP55 certified. IP55 certification makes our batteries water-resistant, but not waterproof. We don’t recommend completely submerging the batteries underwater. As with any electrical/battery system, constant exposure to rain or heat is detrimental to the performance and life of the system.

Upgrade Your Trolling Battery To A LiFePO4 Lithium Battery And Get Double The Usage From A Single Charge And Get ~5 Times The Lifespan.

If you are using the following Battery Brands, UPGRADE to our Lithium LiFePO4 Batteries to get extended working time, less weight on boat and maintenance free for +5,000 cycles that could account to +8 years
Optima Batteries / VMAX / Interstate / Mighty Max / Exide / Universal UB / Minnkota Powe Center / Any other Deep Cycle Battery

IMPORTANT NOTE ABOUT SERIES CONNECTIONS:

Do not hook up LiFePO4 batteries in series without consulting about your battery application. We want you completely hassle free. Series connections can confuse the BMS card. Even though we have upgraded BMS cards in most of our stocked batteries, please check with us to make sure the BMS card is compatible with the application you want. It is possible to make serial connections, but, it is far better to get the exact voltage battery for your application than to get to your voltage by series connections. [For example: better to get one 24V60Ah battery than two 12V 60Ah batteries to connect in series to get 24V60Ah].

Advantages of LiFePO4 Batteries vs LeadAcid/AGM/GEL Batteries

LiFePO4 vs Lead Acid/AGM
Batteries include a Battery Management System

that protects the Battery and also the motor and electrical system.

LED Charge Indicator

Know remaining charge directly from the Battery.

One Battery vs Several Batteries

of other types (in 24v Trolling motors, only 1x24v60AH battery from us vs 2x12v100AH Lead Acid batteries)

Huge Saving on Total Weight

On 36v systems, 1 36v60AH LiFePO4 battery is 55 Lbs and 3x12v100AH in AGM is 189 Lbs total.

More Battery Cell Efficiency,

Get more energy per battery cell

Faster Changing Time

Triple to Quintuple life cycles vs Lead Acid AGM

Charger

Choose the best charger for your battery based on charging time you require. Go to our Battery Charger Page and view SPECS plus charging time based on battery size. All Chargers are sold with Universal Clamp charging terminal.

We don’t mind the little extra time we spend to make sure you get exactly what you need.
Email us at info@LithiumBatteryStore.com or
give us a call at +1 (941) 388-7605 if you have any questions.
