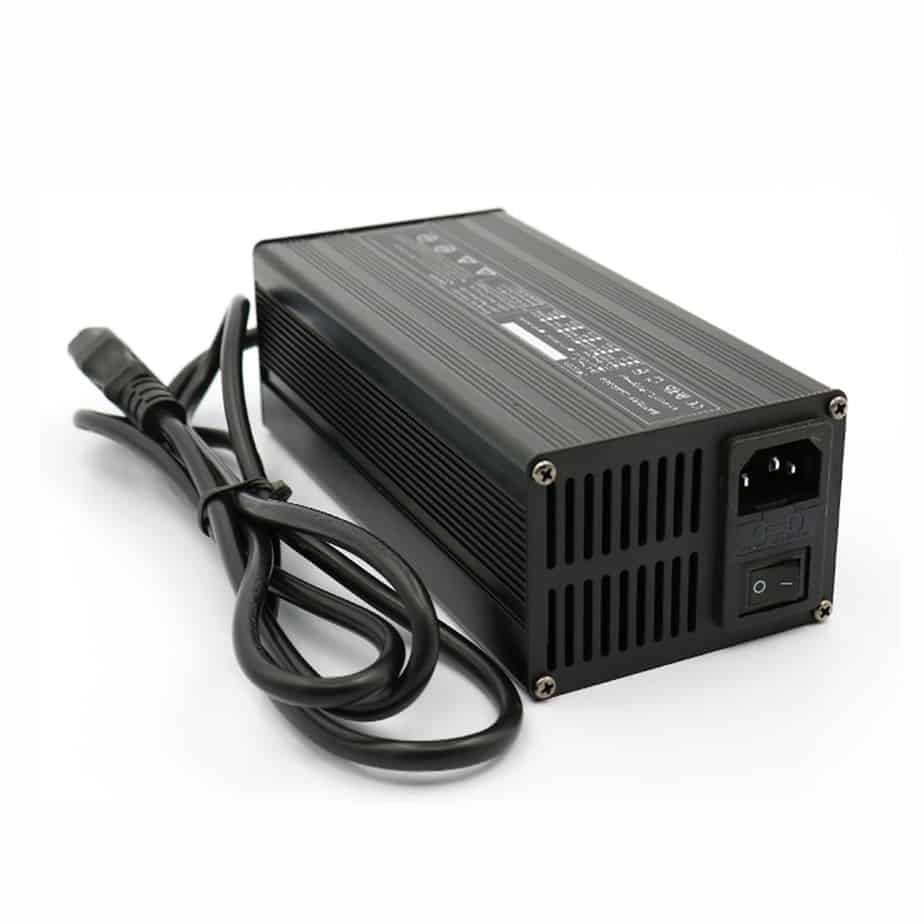

LBS-360 Charger

Premium Charger for 12V, 24V, 36V, and 48V Batteries.

LBS-360 battery charger is an automatic smart lithium battery charger with 3 stage cc cv floating charging mode. High efficiency and high saturation. Easy to use and convenient to take. Very safe and with multi protection. This is  great battery charger for long lasting battery life.

$135.00$195.00

-

Bulk pricing discount? Call us at 863-266-3222

Description

Feature :
1. Aluminium case , light weight
2. Input voltage ; AC 100 V ~240 V  50 / 60 HZ
3. Max wattage : 360 W
4. Charge mode : 3 stage ( CC CV float mode )
5. Charging : High saturation and efficiency

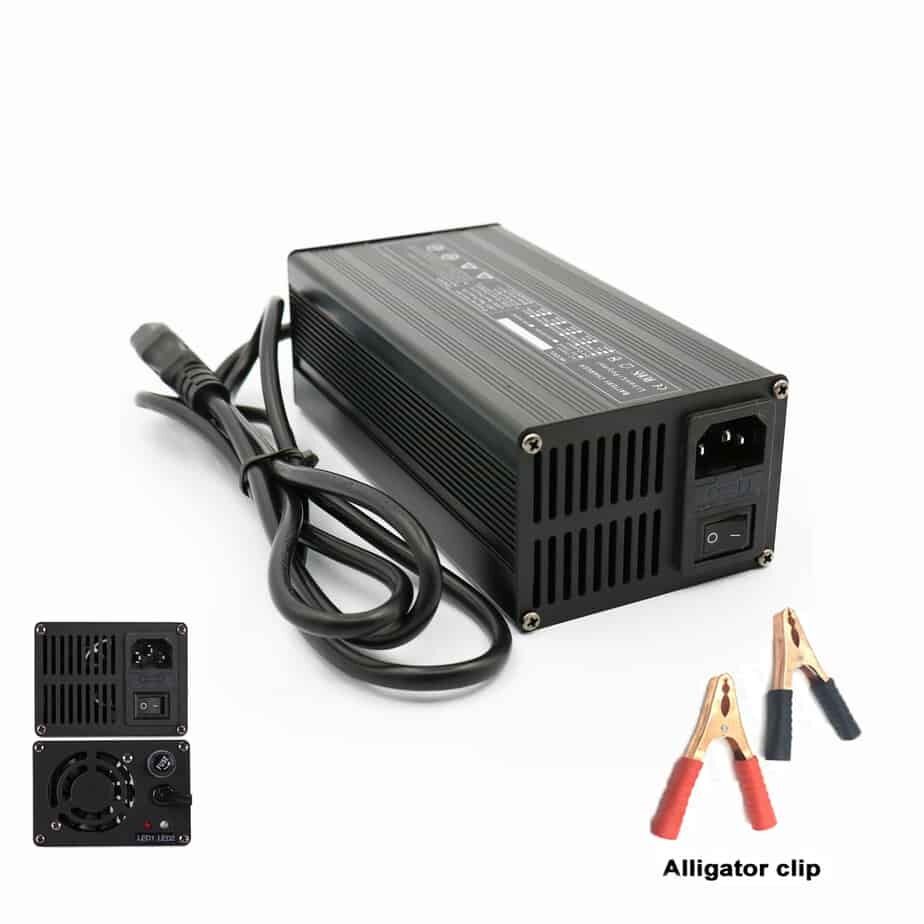

6. Output Connector : Alligator Clips

The 3-stage mode charging :
First stage ( constant current ) : The charger will supply constant current for the battery
Second stage ( constant voltage ) : The voltage will be rising under the first stage, when it reach constant voltage value, it will turn into the second stage. The current will be slowly smaller until it reduce to floating value,the CV stage will end.
Third stage ( Floating charging ) : When the current is approaching the value of transition, the charger will cut down to the given current gradually, that means the battery power is full and indicator light turn to green. At this moment, the battery can be stopped charging or keep on trickle current charging for half an hour.

CONSTANT CHARGING VOLTAGE (LIMITED)

Voltage

  • 12V
  • 24V
  • 36V
  • 48V

LiFePO4

  • 14.6V
  • 29.4V
  • 43.8V
  • 58.4V

CONSTANT CHARGE CURRENT

Voltage

  • 12V
  • 24V
  • 36V
  • 48V

Limited Current (Amps-AH)

  • 20
  • 12
  • 8
  • 6



Weight: 4.85 lb
Size: 180*90*63mm
Protection: SCP,OVP,OCP,OTP
Input Voltage: 85VAC-250VAC
Max Wattage: 360W
– Full automatic transition of CC, CV and Float/cut off (CC, CV 3-stage charger)
– Precise limit of voltage and current. Guarantee fully charged and avoid over charge.
– Protection: Short Circuit, Over Voltage, Over temperature, Reverse polarity protection, DC output isolated from AC input.
– High Efficiency, 95%-98%, PFC: 0.96 eco-friendly

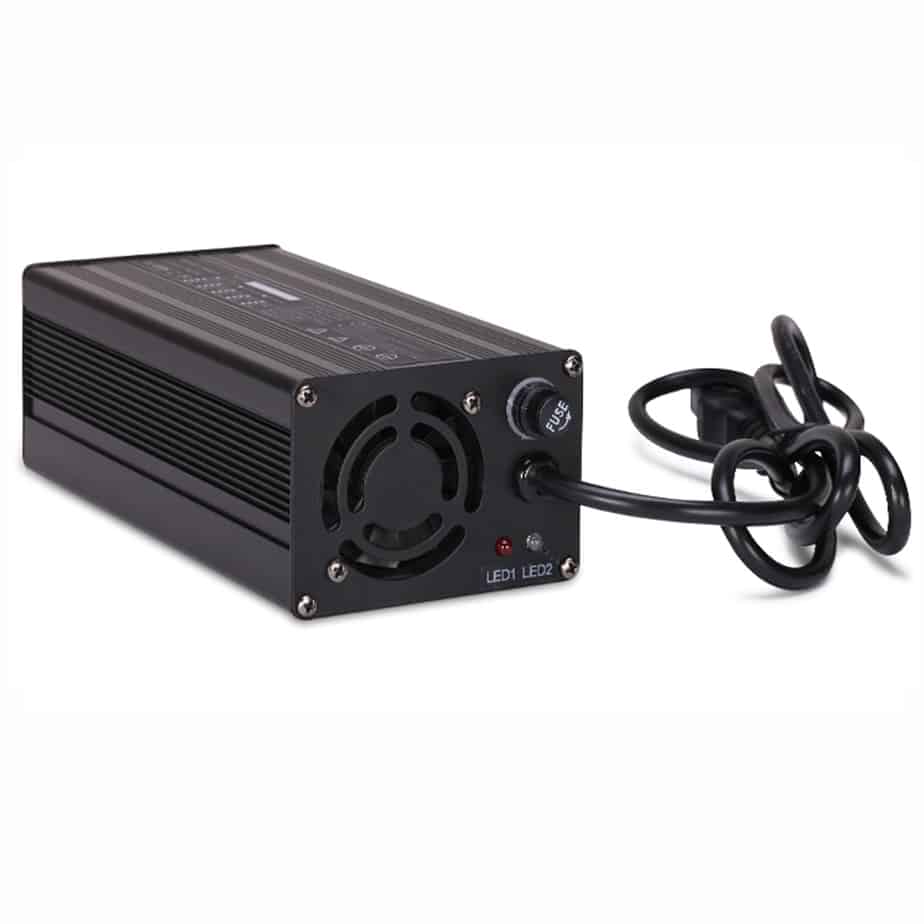

– Current and Voltage display, 2 LED indicators, RED (Power On), RED/GREEN (charging/full).
– CE, ROHS, ISO9001, ISO14001 Certified.
– Safe and high quality – Advanced high frequency switching mode power supply technology.

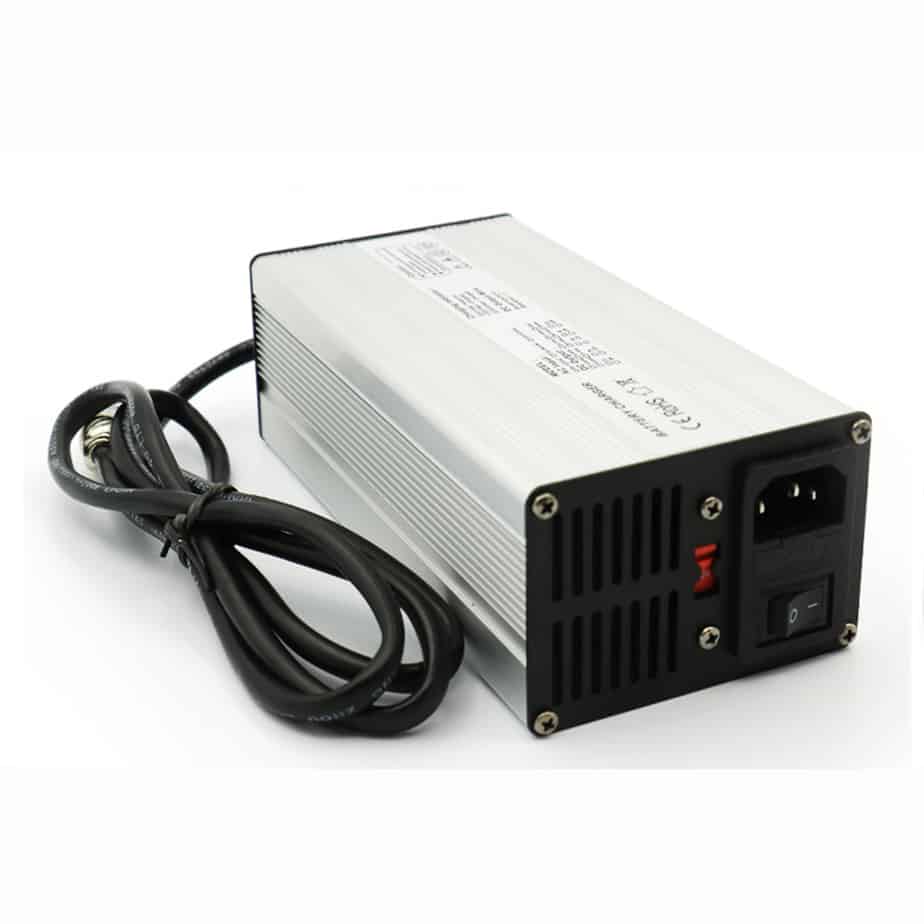

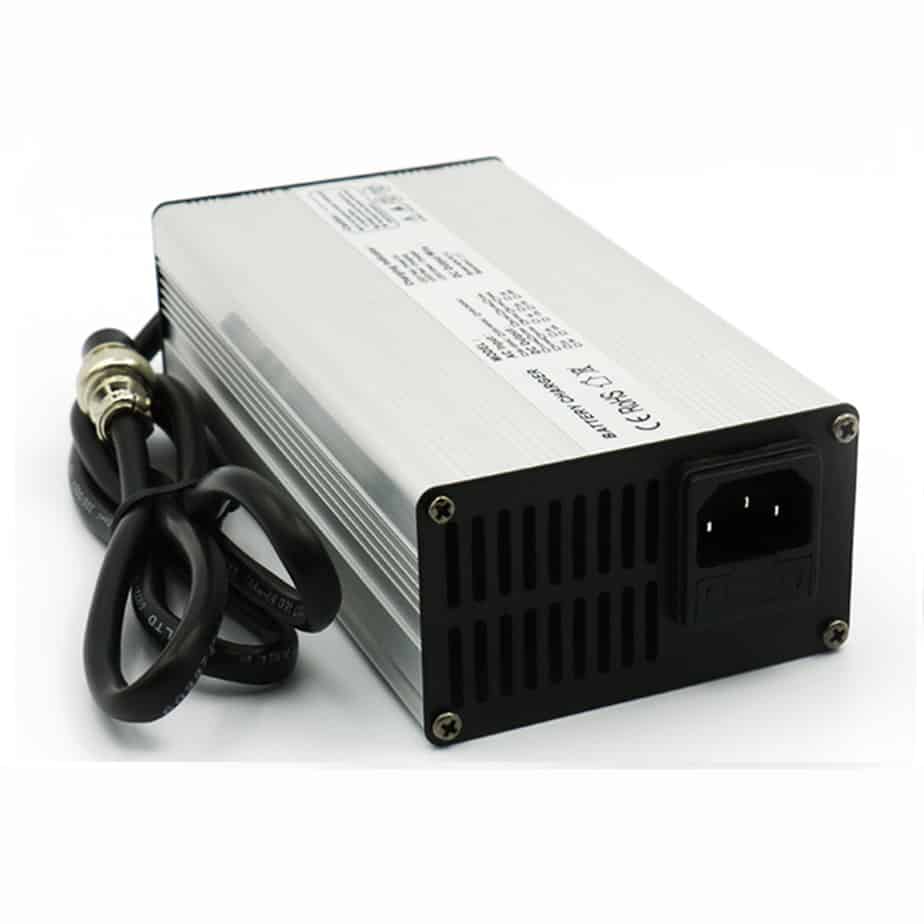

– Aluminum housing, portable and reliable.

Dimensions and Weight

Weight 5 lbs
Dimensions 7.09 × 3.54 × 2.48 in
Voltage

12V20A, 24V12A, 36V8A

Connector Type

Alligator Clamps (Included), ClubCar DS and Precedent (+$30), EZGO TXT (+$50), Yamaha 3-Pin (+$40), Yamaha G19/G22 (+$30), Anderson Connector (+$60), EZGO RXV (+$40)
