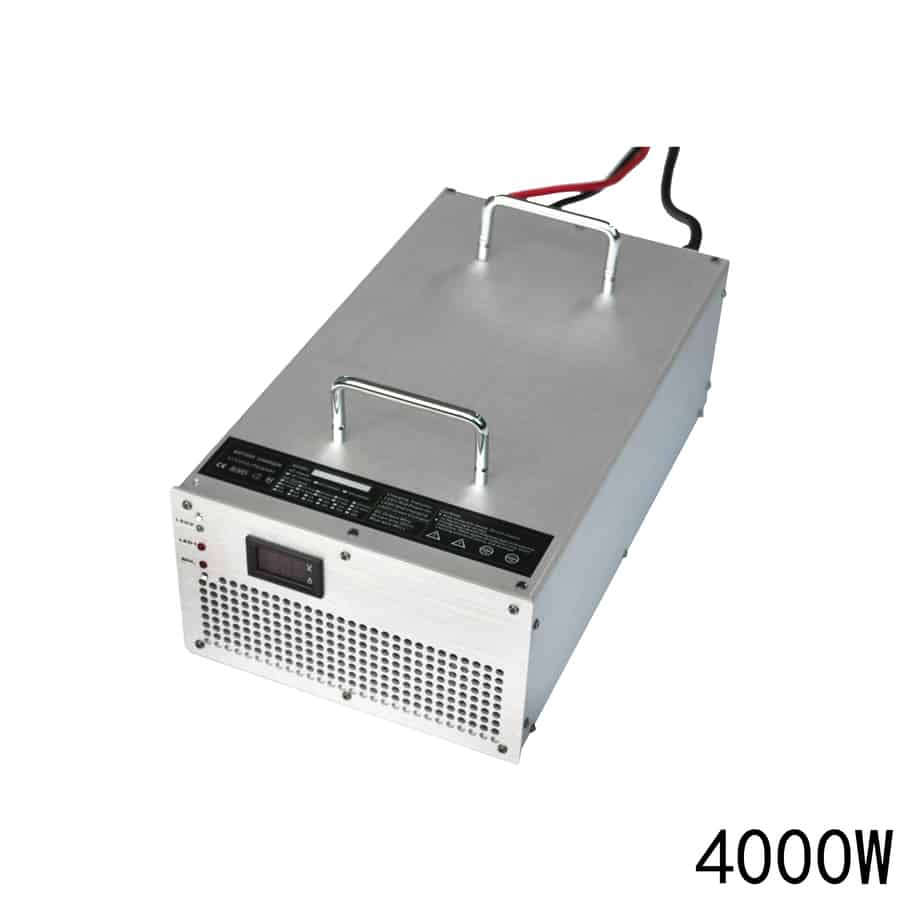

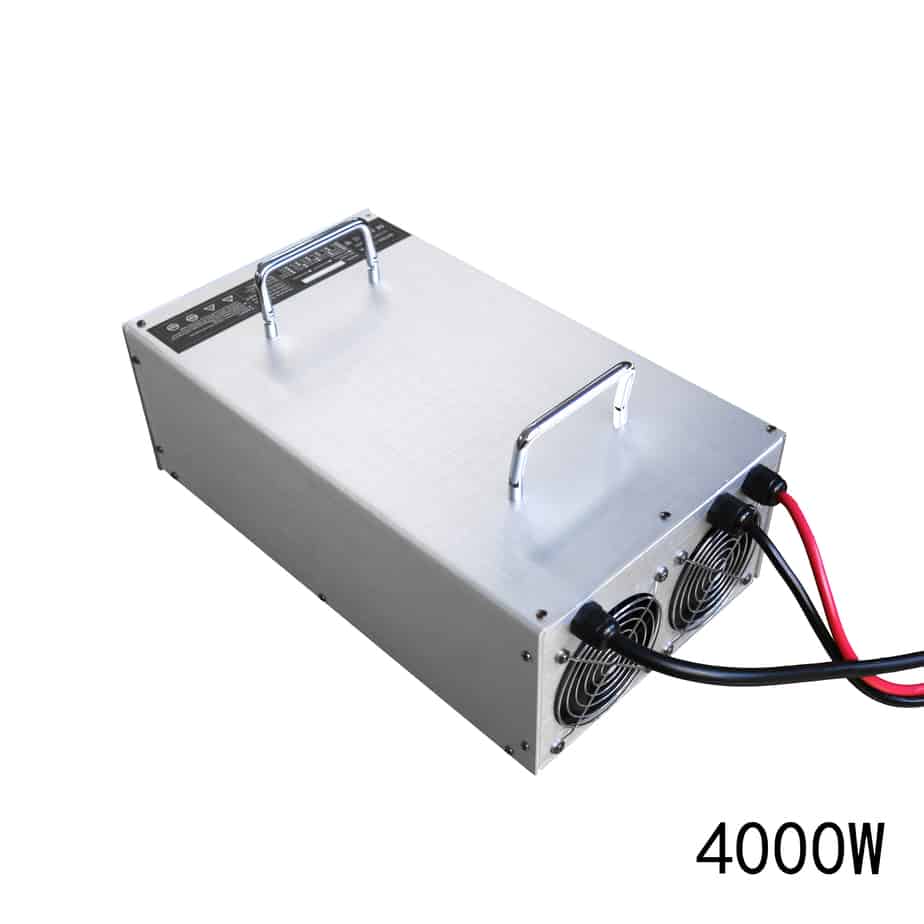

LBS-4000 Charger

Feature :
1. Aluminium case , lightweight
2. Input voltage ; AC 100 V ~240 V 50 / 60 HZ
3. Max wattage : 4000 W
4. Charge mode : 3 stage ( CC CV float mode )
5. Charging : High saturation and efficiency

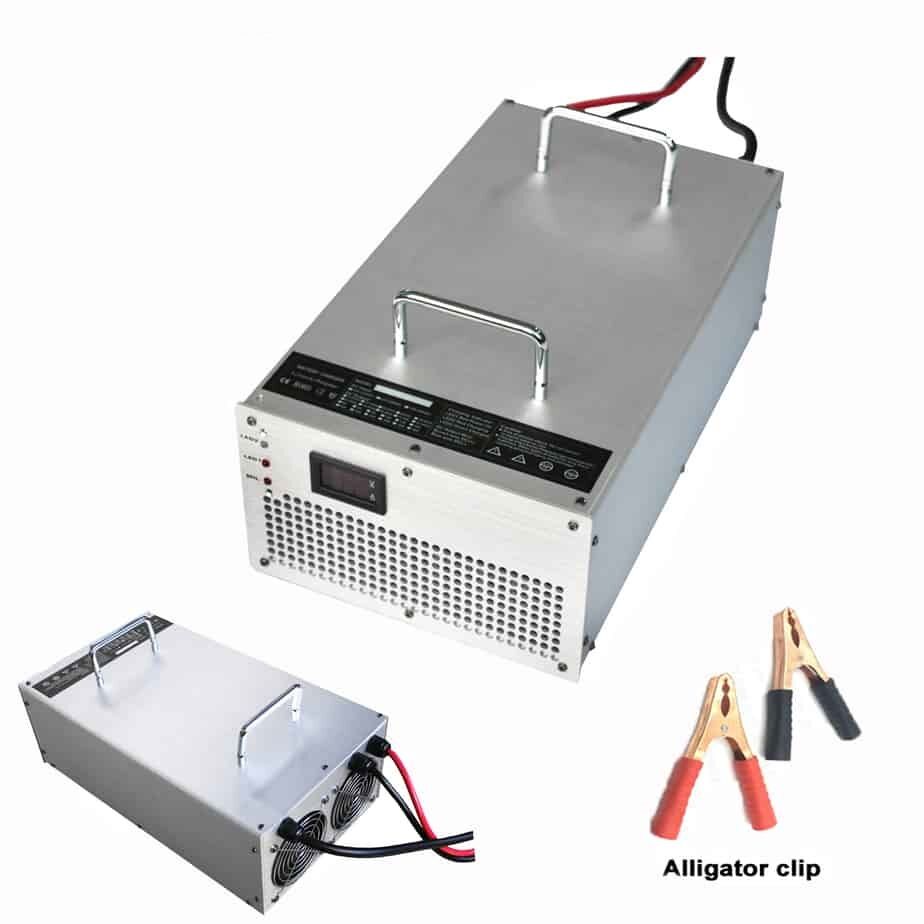

6. Output Connector : Alligator Clips

$800.00$860.00

-

Bulk pricing discount? Call us at 863-266-3222

Description

The 3-stage mode charging :

First stage ( constant current ) : The charger will supply constant current for the battery.

Second stage ( constant voltage ) : The voltage will be rising under the first stage, when it reach constant voltage value, it will turn into the second stage. The current will be slowly smaller until it reduces to floating value,the CV stage will end.

Third stage ( Floating charging ) : When the current is approaching the value of transition, the charger will cut down to the given current gradually, that means the battery power is full and indicator light turns to green. At this moment, the battery can be stopped charging or keep on trickle current charging for half an hour.



CONSTANT CHARGING VOLTAGE (LIMITED)

Voltage

  • 12V
  • 24V
  • 36V
  • 48V
  • 72V

LiFePO4

  • 14.6V
  • 29.4V
  • 43.8V
  • 58.4V
  • 87.6V

CONSTANT CHARGE CURRENT

Voltage

  • 12V
  • 24V
  • 36V
  • 48V
  • 72V

Limited Current (Amps-AH)

  • 100
  • 100
  • 80
  • 60
  • 40



Weight: 22.04 lb
Size: 15 x 9.85 x 6 Inches
Protection: SCP,OVP,OCP,OTP
Input Voltage: 85 VAC-250 VAC
Max Wattage: 4000W
– Full automatic transition of CC, CV and Float/cut off (CC, CV 3-stage charger)
– Precise limit of voltage and current. Guarantee fully charged and avoid over charge.
– Protection: Short Circuit, Over Voltage, Over temperature, Reverse polarity protection, DC output isolated from AC input.
– High Efficiency, 95%-98%, PFC: 0.96 eco-friendly
– Current and Voltage display, 2 LED indicators, RED (Power On), RED/GREEN (charging/full).
– CE, ROHS, ISO9001, ISO 14001 Certified.
– Safe and high quality – Advanced high frequency switching mode power supply technology.
– Aluminum housing, portable and reliable.

Dimensions and Weight

Weight 23 lbs
Dimensions 16 × 10 × 7 in
Voltage

12V, 24V, 36V, 48V, 72V

Connector Type

Alligator Clamps (Included), Anderson Connector (+$60), EZGO RXV (+$40)
